Model: S700

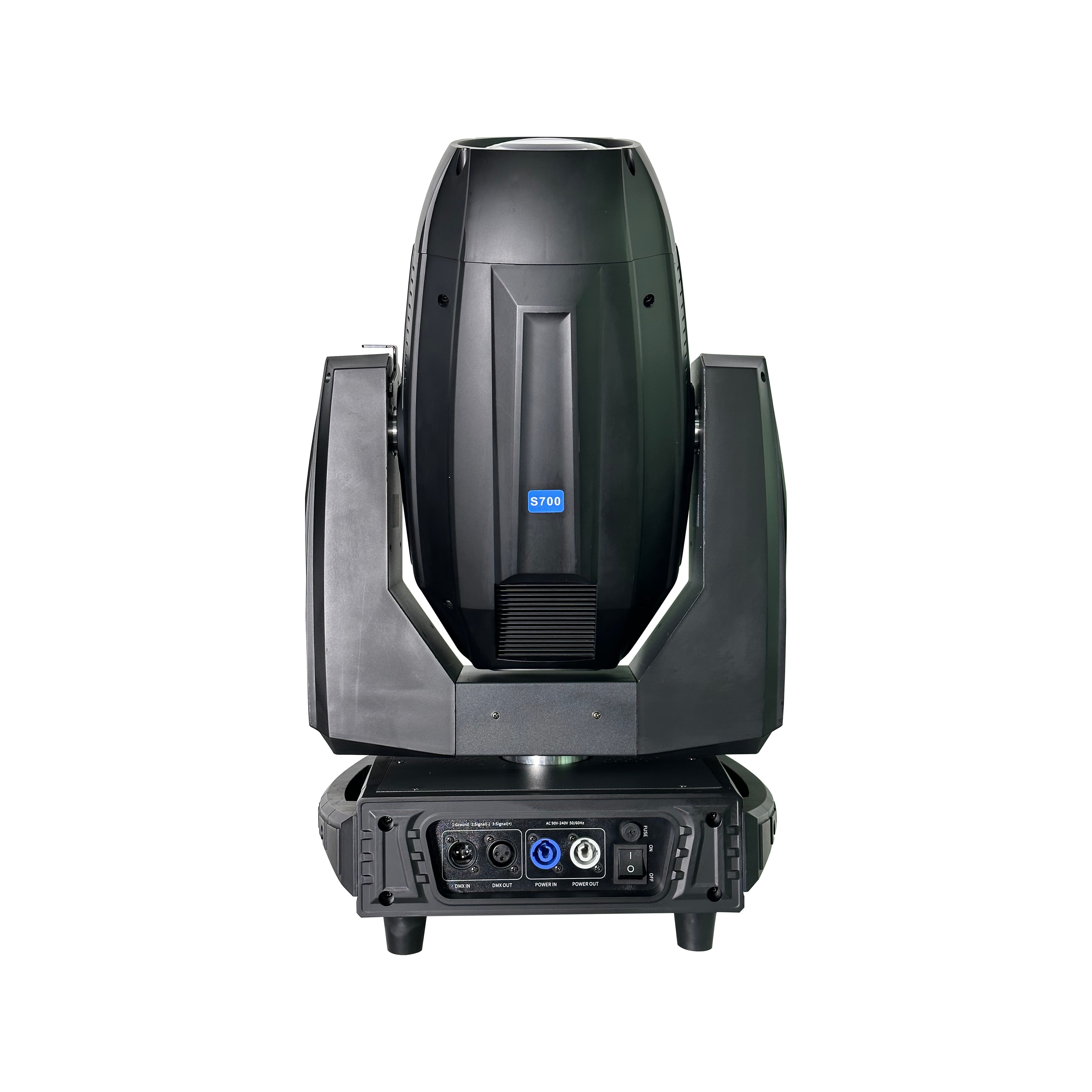

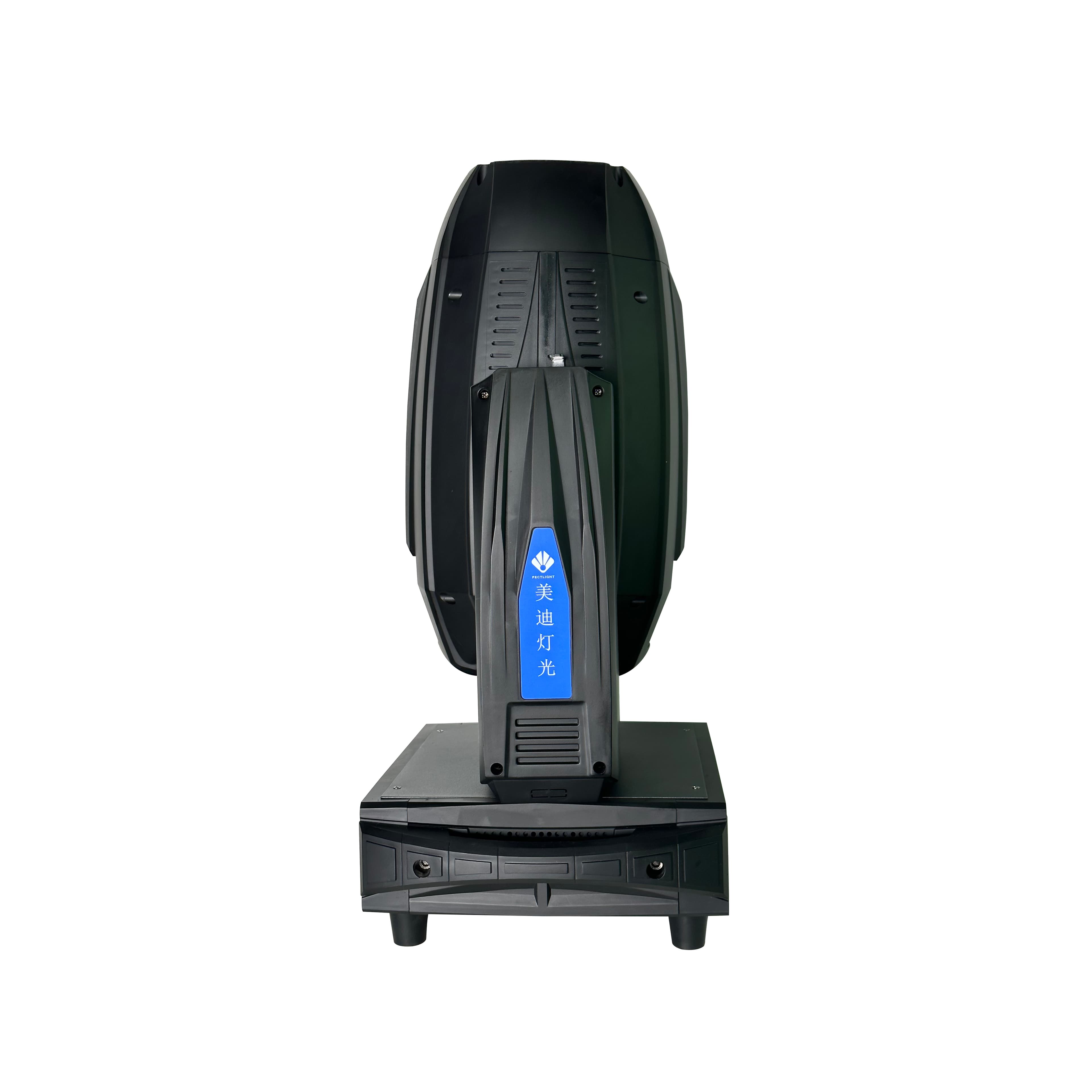

480W BSW moving head light with CMY color system The total number of motors 16 ultra-quiet motor, 2 units of three phase motor, 16bit; Appearance: High temperature alloy plastic Protection class: IP20; 2 Gobos: 1 rotating Gobo wheel,& 1 fixed Gobo wheel, 2 Prisms: 6-facet & 16-facet, Linear Zoom for Gobos & Prisms, Gobos & Prisms Combination.)
| Power | Power consumption: 700W Voltage: 100V~240V±10%/50~60Hz Light source: Osram 461W Bulb, lifespan 1500 hours. Colour temperature: 7500K |
| Optical/Frost/Focus/Strobe | Optical Lens: Three-in-one optical lens design: (BEAM mode): 2°～15°; (SPOT mode): 5°～50°; (WASH mode): 8°～52° The three modes can be switched at will Three-in-one function of beam, wash and spot. Frost: 0%~100% uniform soft light atomization effect. Focus: Using high-precision glass optical lens and electronic focusing design, ultra-smooth adjustment of focus. Strobe: Dual-chip stroboscopic, stroboscopic speed 0.5~9 times/second |
| Gobo/Color/Prism/Zoom | Colour wheel: 13 colors + white light, half-color, two-way flow, color conversion and half-color rainbow effect. CMY wheel 3 colors: Cyan, Magenta, Yellow. Multiple color disks can be superimposed to present linear color mixing system, such as color from light to deep, color mixing, and color switching and etc. Gobo wheel: Rotated gobo wheel: 7 rotated gobos + white light, running water, and shaking effects. Fixed gobo wheel: 14 gobos + open, water effect and vibration effects. Effect wheel: 4 effect Gobo (including flame effect) + 1 water pattern effect picture Prism: 2 independent rotating prisms, 8-facet prism + 16-facet prism, the biprisms can be combined and superimposed with each other or rotated individually. The combination of fixed and rotating modes can generate a strange and special multi-beam effect. Prism focus: The prism can linearly zoom in and out, and the clarity is adjustable. |
| Control Mode | DMX512/Auto/Sound Control/Master/Slave, 3-pin/5-pin signal in & out, powercon in & out Channel: 18 (factory default)/22 international standard DMX channels |
| Display and Motor | Display: LCD screen display, touch screen + button control, Chinese/English, intelligent 180-degree flip. Motor: Pan Tilt motor, ultra-quiet, super high-speed 3 phase motor. Pan/Tilt: 16Bit resolution 540 degrees horizontal, 16Bit resolution 270 degrees vertical. |
| Product Size | Product Size: 390 length x 290 width x 660 height mm |
IP20M400
IP20M500
IP20M600
Silent version overseas software, really mute; Imported fan, the noise can be controlled within 38dB; Built-in filter regulator function, voltage instability can still be worked normally;etc
IP20M700
M700-420 beam light, using the original PHILIPS MSD Silver 420W LL light source; large diameter φ200mm optical lens, thick and full light spot; sharp prism effect; gyroscope function is used to control the blower and the blower has adjustable speed function; silent design, the blower starts working only when the light bulb is on; intelligent RDM one-key sending function
Our lighting engineers will recommend the perfect configuration for your venue and budget.
